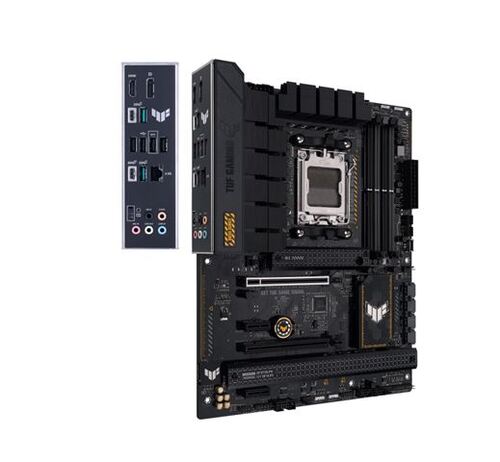

MBO AM5 AS TUF GAMING B650-PLUS

TUF GAMING B650M-PLUS, AM5, B650, DDR5, Broj utora 4, 4800 - 7600 MHz, PCIe 4.0 x16 1, SATA3 4, RAID 0, RAID 1, 8-kanalni audio, 1x 2.5Gb Ethernet, Display Port 1, ATX, USB 3.2 4

Socket - AM5
CPU - AMD Ryzen 3
Chipset (N) - B650
BUS[MHz] - 1000
Memorija - DDR5
Broj utora - 4
Max. memorije [GB] - 128
Takt memorije [MHz] - 4800
AGP 4x/8x - n/a
PCI - n/a
PCIe 3.0 x16 - 0
PCIe x16 - n/a
PCIe x8 - n/a
PCIe x4 - 1
PCIe x1 - 2
PCI-X - n/a
PATA - n/a
SATA II - n/a
SATA3 - 4
RAID - 0
Audio - 8-kanalni audio
Mreža - 1x 2.5Gb Ethernet
Parallel - n/a
Serial - n/a
PS/2 mouse - n/a
PS/2 keyboard - n/a
eSATA - 0
D-sub - n/a
DVI - n/a
Display Port - 1
HDMI - 1
RJ45 - 1
USB 2.0 - 4
USB 3.0 - 0
S/PDIF Out - n/a
FireWire - 0
4-pin ATX 12V Power - 1
8-pin ATX 12V Power - Y
20-pin ATX Power - n/a
24-pin ATX Power - Y
Front panel audio - Y
Chasis Intrusion - n/a
CD Audio In - n/a
Chasis Fan Power - 4
CPU Fan Power - 2
Format ploče - ATX
WLAN connector - n/a
Podrška za integrirani grafičk - Y
SATA Express - n/a
M.2 - 3
U.2 - n/a
USB 3.1 - 0
USB 3.1 - 2
PCIe 4.0 x16 - 1
USB 3.2 - 4
PCIe 5.0 x16 - 0
